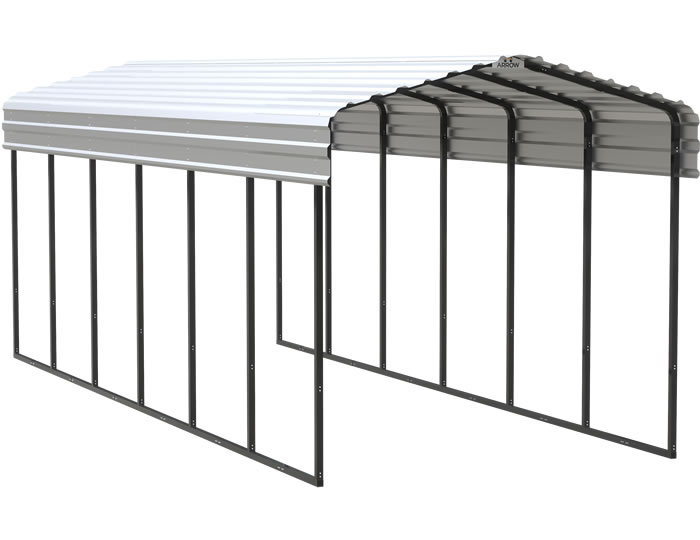

Arrow 10x29x9 Steel Auto Carport Kit – Eggshell

Arrow 10’W x 29’D x 9’H (10.25’H at Peak) Steel Auto Carport Kit (model CPH102909)
The 10x29x9 ft carport from Arrow is a newly re-designed carport and
multi-use shelter that is wind and snow rated for maximum protection
against the elements! Our carport features a galvanized steel roof with
horizontal panels, and an industrial steel frame that has been powder
coated to resist corrosion and rust. This 10x29x9 ft carport has a wind
speed rating of 100 MPH and a snow / ground load rating of up to 35 lbs per sq ft when anchored.
Rain or shine – it doesn’t matter, this carport is built to last! The
Arrow carport is a high quality steel structure that is perfect for
protecting cars, boats, tractors trucks and even outdoor picnic or play
areas.It’s galvanized steel roof is made to protect
against corrosion, rust and the elements and features an attractive
eggshell white color roof. The Carport is assembled on our tough all-steel, powder coated 2 inch tube frame, made
to reinforce stability and strength in the structure. The premium powder
coating provides corrosion and rust resistance. Easy to install,
the
Carport comes with slip-fit connections with pilot holes and
self-drilling screws making this unit easy to build straight out of the
box.
Model: CPH102909
Size: 10x29x9 (10.25’H at peak)
Colors: Eggshell White roof with Black frame
Material: Galvanized Steel
Storage Area: 277 square ft. / 2658 cubic ft.
Exterior Dimensions: 120″W x 344.5″D x 123.15″H at peak
Interior Dimensions: 116″W x 344.5″D x 106.7″H at peak
Wall Height: 108.75″
Building Weight: 891 lbs
Warranty: 10 Years Limited Manufacturers Warranty
Ground Snow Load: 35 lbs. per sq ft
Wind Load: 100 mph
Free Fast Shipping!
*foundation / flooring materials not included
INDUSTRIAL GRADE FRAME
2 in. / 5,1 cm square tube / 15-gauge wall thickness delivers wind and
snow load strength and stability. Premium black powder coat finish
resists rust and corrosion. Rib spacing: 4.5 ft. / 1,3 m.SLIP-FIT FRAME CONNECTIONS
Slip-fit frame with pilot holes and self-drilling screws for easy assembly. Ready-to-build right out of the box.BUILT-TO-LAST ROOF
Horizontal roof panels with 29-gauge painted galvanized steel for corrosion resistance. Rounded eaves for additional protection from elements. Roof pitch: 3:12. 12 in. / 30,5 cm overhang at the gables. Eggshell finish.
